Provide One-stop Security Solution for a Safer World

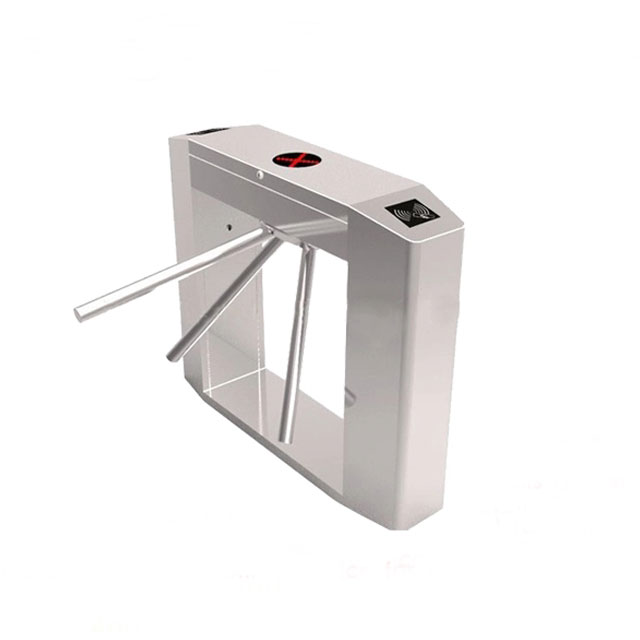

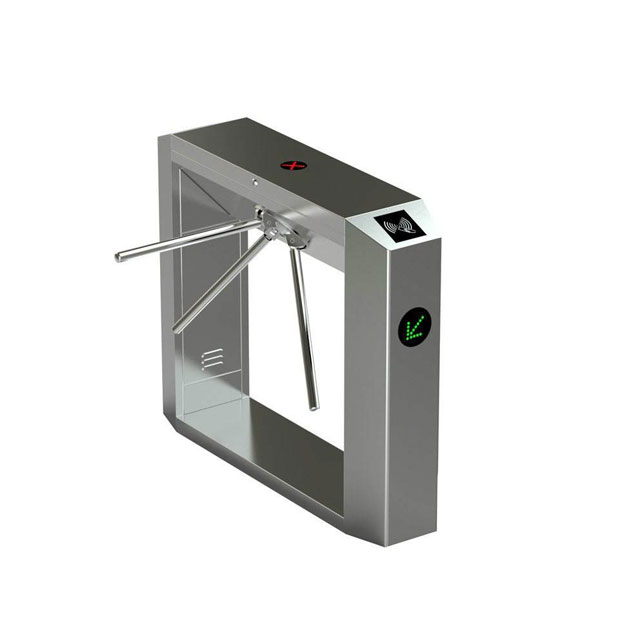

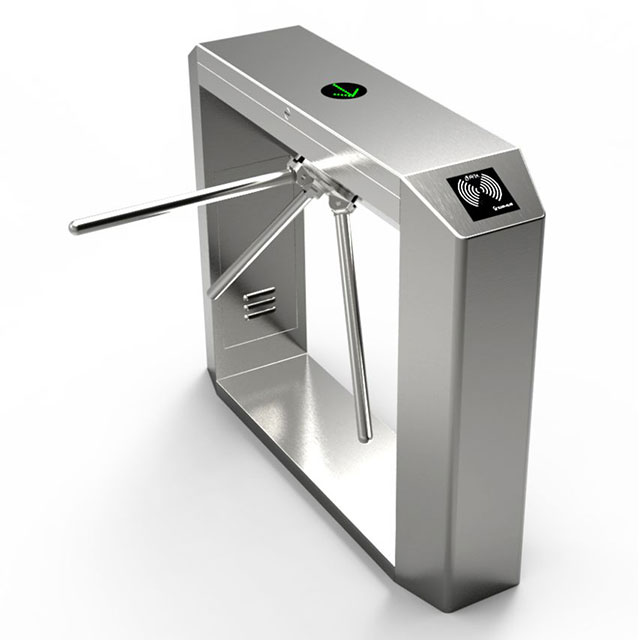

JKDC-120B Tripod Turnstiles systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Self-test function, when power on, system restoration automatic.
Single directional or Bi-directional is selectable.
Green/red LED indicator.
Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time, arm will lock automatically.
When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.
| Product Name | Access Control System Tripod Turnstile Without Side Stainless Steel Panel |
Model Number | JKDC-120B Without Side Stainless Steel Panel |
| Material | 304 Stainless Steel |
| Surface treatment | Brushed and polished |
| Dimension of Housing (L×W×H mm) | 1200*280*1000MM(Can customize) |
Lane width | ≤550mm |
| Operation Voltage | 24V DC |
| LED Indicator | Yes |
| Infrared Sensor | Yes |
Passing Direction | Single directional / Bi-directional |
| Power Supply | AC 220V/110V±10% |
| Frequency | 50/60Hz |
Traffic speed | 40 persons/min |
| Emergency | Automatic arm open when power off |
| Working environment | Indoor and outdoor(With Shelter) |
| Package Size | |
| Dimension | 37*127*117cm |
| MEAS | 0.55CBM |
| Net Weight | 60kg/pc |
| Gross Weight | 74kg/pc |
