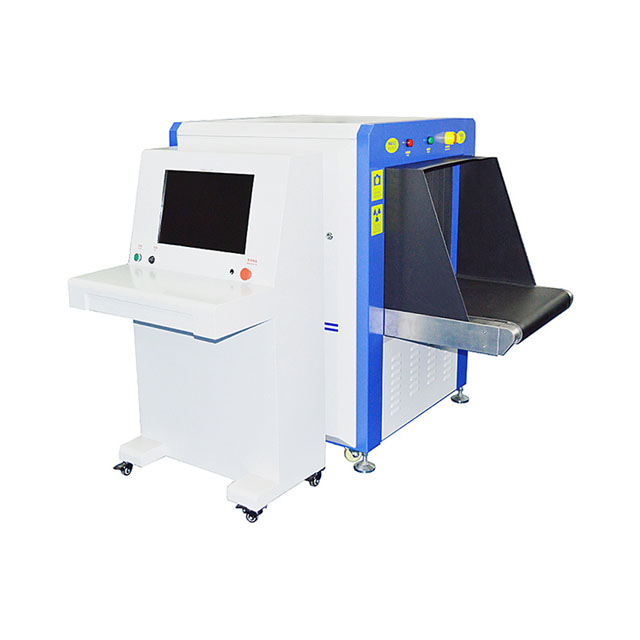

High Penetration Low Radiation X-ray Luggage Scanner Tunnel Size 6550 High Penetration Low Radiation X-ray Luggage Scanner Tunnel Size 6550

X- ray penetrate to inspect object's metal structure, display where is invisible to the naked eye. can detect which is invisible to naked eyes. This machine is widely used in the detection of electronics, shoes, toys, courts, railway stations, as well as for the security detection of handbag.Increase infrared energy-saving system,adopt dual-source dual-probe technology.

Quantity:
Share this:
Highlights
  • Specifically for roads, railways, customs, terminal and the design of public places;

  • Specialized operating platform;

  • Features high-performance network;

  • User free to choose the mode of training

  • Matching crisis can be integrated information analysis system (security black box)

  • Matching explosives and drug detection X-ray automatic identification software system (also known as-Auto sight)

  • Through the EU CE Certification / Ministry of Public Security through the National Detected / international ISO9001 certification / ISO14001 environmental certification / Chinese Government's Radiation Safety Certification


Specifications



Product NameX-ray inspection machine

Model Number

JKDC-6550

General specification

Certification

CE&ISO

Tunnel Size650(W)×500(H)mm
Conveyor Speed0.22m/s
Conveyor Max Load170 kg
Single inspection dosage< 1.5µsv
Wire Resolution0.1mm diameter metal wire
Steel Penetration43MM armor plate
Film SafetyFor ISO 1600
Maximum leakage radiation<0.15µGY/H

Operating Environment

Storage Temperature

-20ºC to60ºC

Operating Temperature

0ºC to 45ºC

Relative Humidity

20 to 95% non-condensing

System Power

220 VAC (±10%) 50±3HZ

Power wastage

1.0 KW (Max)

Noise

<55DB

Image System
X-ray SensorL-Shaped Photodiode Array (multi-energetic), 12bit Deep
Image ProcessingEdge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval
Image Grey Level4096
Image Max Resolution1024 * 1280 pixel
Image storageStorage 60000 pictures in real time
Zones & Zoom1-9 Image regions, 2, 4, 8,16 Times Enlarge, Whole screen continuous observation
High-energy/low energySwitch from high energy to low energy

X-ray generator

Orientation

Vertically Upward

Tube Current

0.4~1.2MA(adjustable)

Anode Voltage

100~160 kV (adjustable)

Angle

80°

Generator cooling/working periodsSealed oil bath with forced air/100%


Package
Package Size
Dimension220*115*150CM
Net Weight400KG
Gross Weight450GK


×
