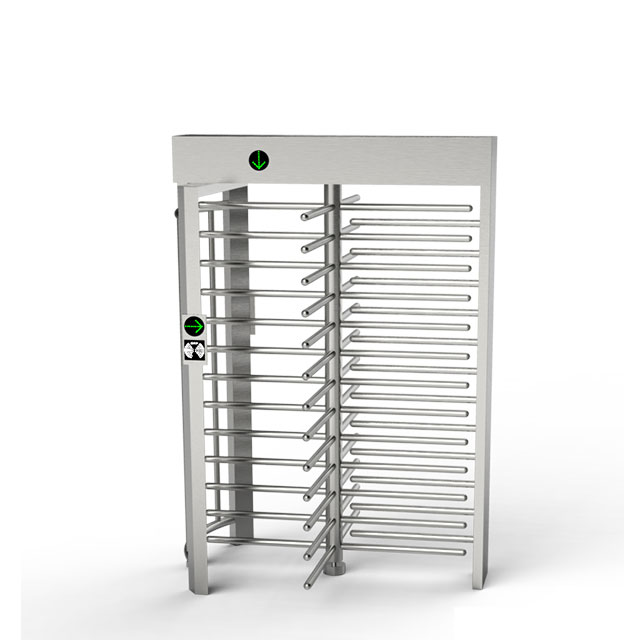

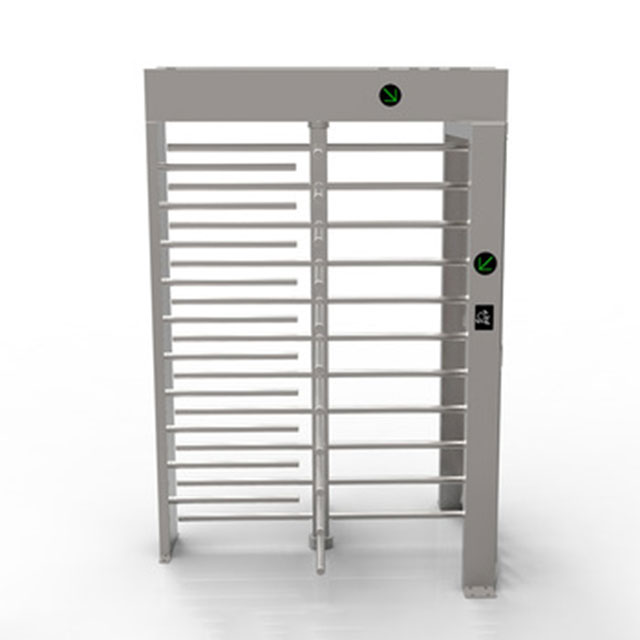

120 Degree Single Channel Fingerprint Reader Full Height Turnstile Gate 120 Degree Single Channel Fingerprint Reader Full Height Turnstile Gate

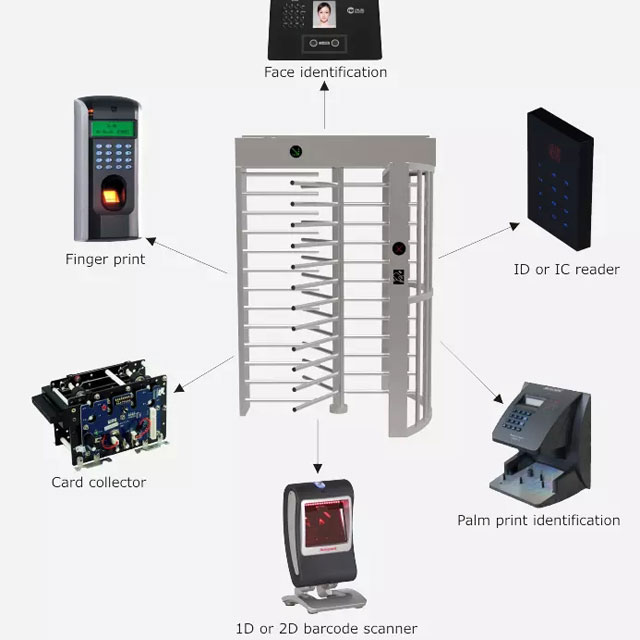

Full height turnstile has different optional configurations for the applications of all building conditions and for the control of all kinds of passage entrance-exits. Different identification systems (ID card, IC card, bar-code, handkey, fingerprint, iris, etc.) can be configured into the turnstile system. The turnstile can be connected to any kinds of controllers and various consumption devices.

Share this:

  • Full height turnstile is often used for high security access control solutions.

  • Single directional or Bi-directional is selectable.

  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.

  • The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.

  • It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).

  • It is very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the power off.

  • Full height turnstile is ideal for both indoor and outdoor settings.


Product Name120 Degree Single Channel Full Height Turnstile

Model Number


Material 304 Stainless Steel

Passage Width


Body Size1650*1500*2300mm (Can be customized)

LED Indicator


Open direction

Single directional / Bi-directional

Arm rotation angle120 degree
Power SupplyAC 220V/110V±10%

 Traffic speed

35-40 persons/min

Operation Temperature

-15 °C – 60 °C


Automatic arm open when power off

  Working environment Indoor and outdoor (Shelter)

Package Size
Net Weight150KG
Gorss Weight200KG
