Tripod Turnstiles are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.
Use of RFID IC cards,ID cards,Barcode or magnetic cards as automatic identification system and achieve access attendance,fees or function.
A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.
Single or bi-directional function in mechanical and electrical versions.
Automatic reset of barrier arms after each passage.
Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.

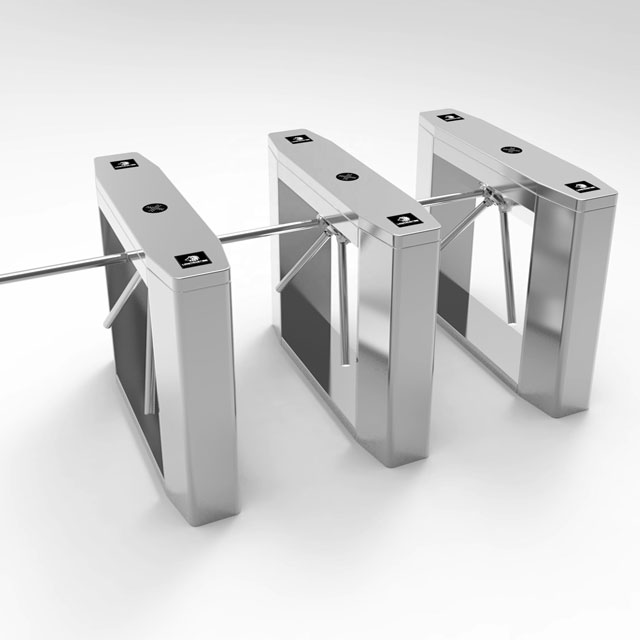

| Product Name | Vertical Tripod Turnstile |
Model Number | JKDC-48 |
| Material | 304 Stainless Steel |
| Dimension of Housing (L×W×H mm) | 480×280×980mm(Can customize) |
Bar length | 510mm |
Arm Diameter | 40mm |
| Power Supply | AC 220V/110V±10% |
| Frequency | 50/60Hz |
Traffic speed | 40 persons/min |
| Working Voltage of Motor | DC24V |
Rated Power | 40W |
Communication interface | RS485/TCP/IP |
| Working environment | Indoor and outdoor |
| Package Size | |
| Dimension | 59*39*117cm |
| MEAS | 0.27CBM |
| Net Weight | 40kg/pc |
| Gross Weight | 54kg/pc |
