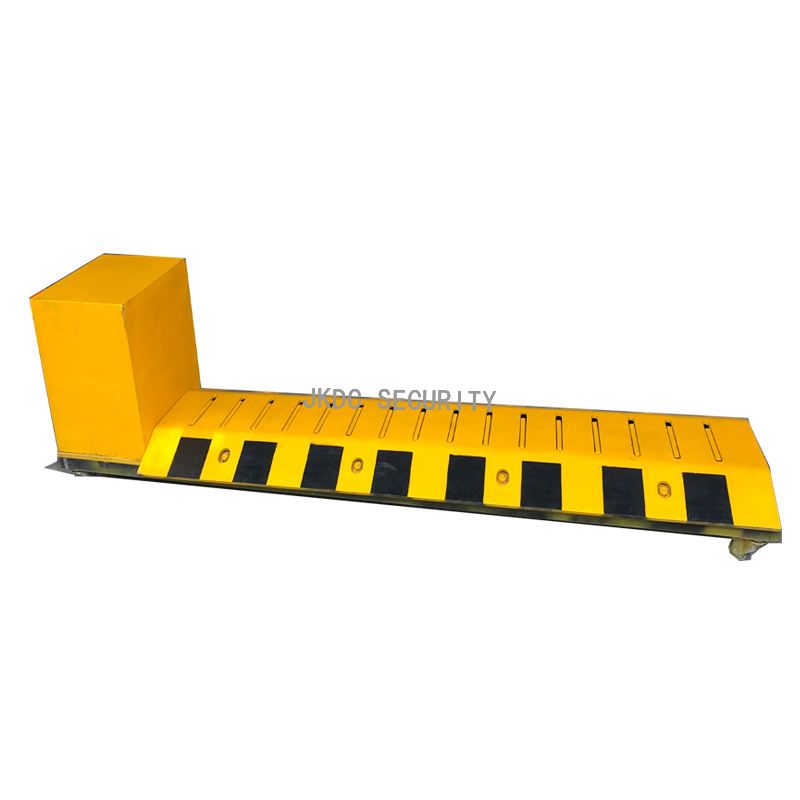

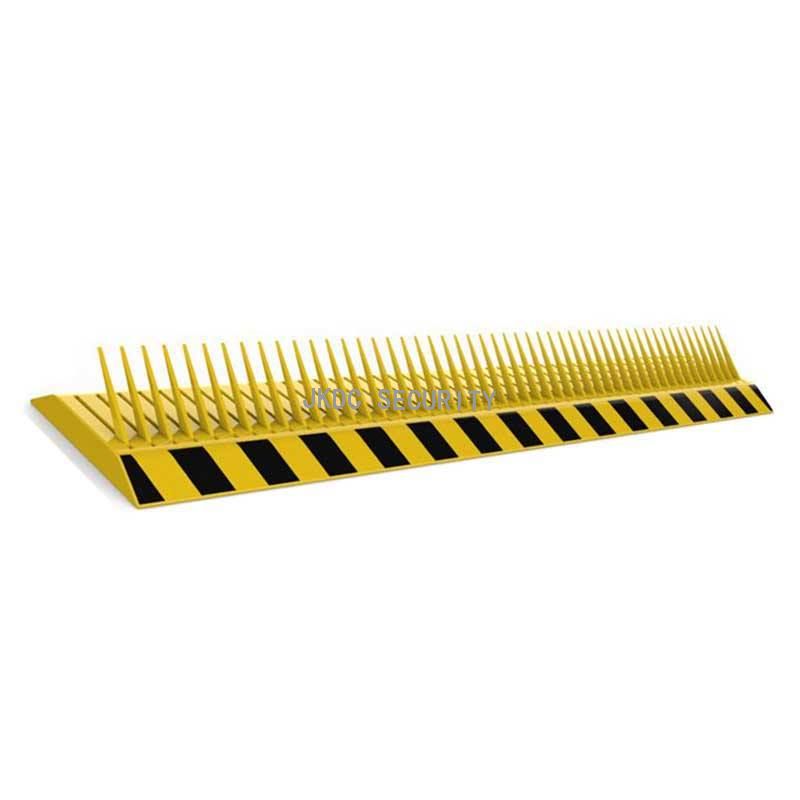

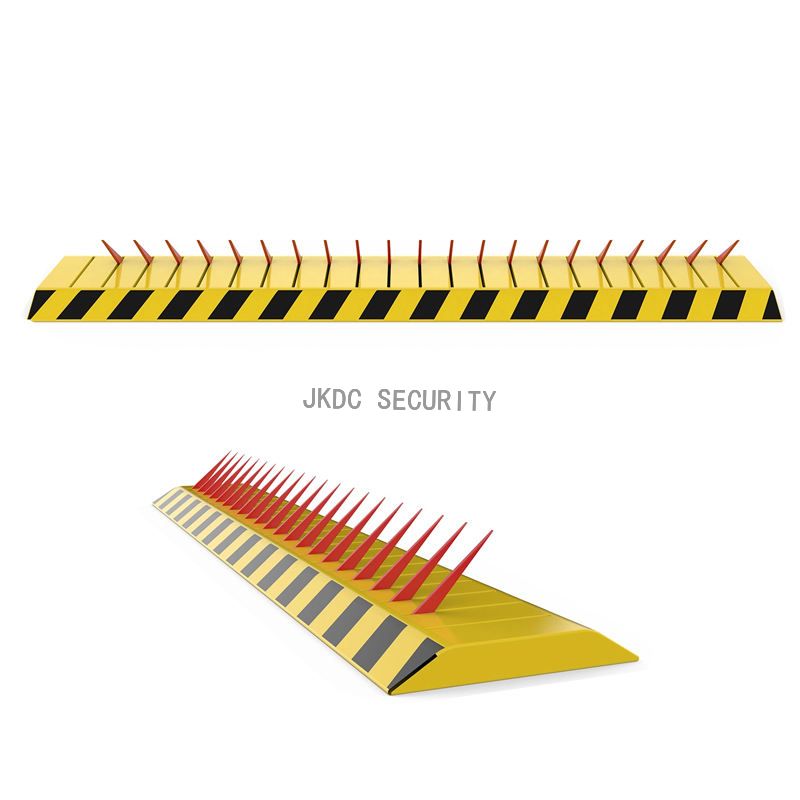

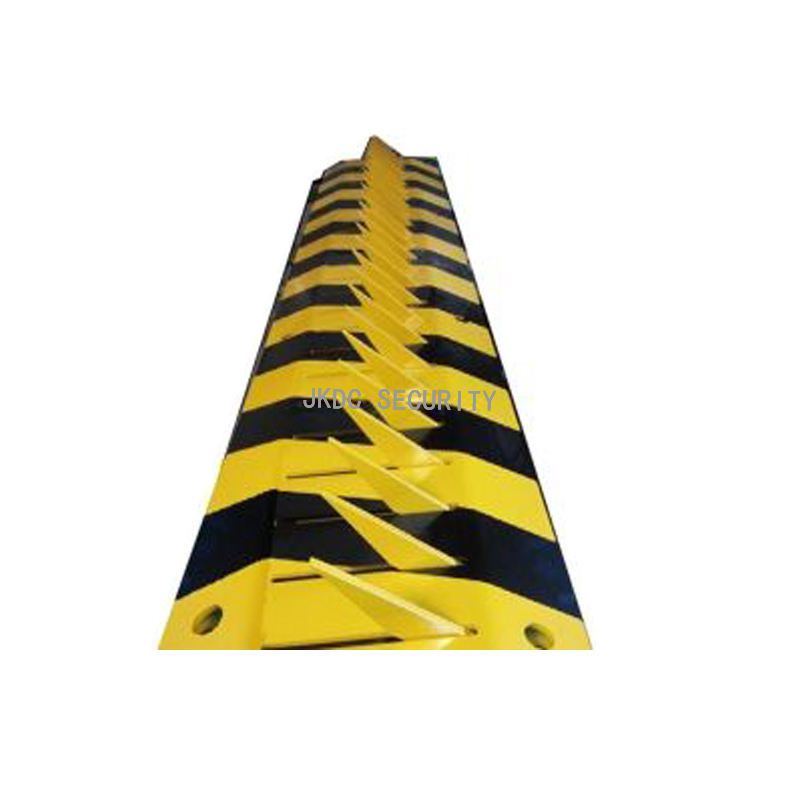

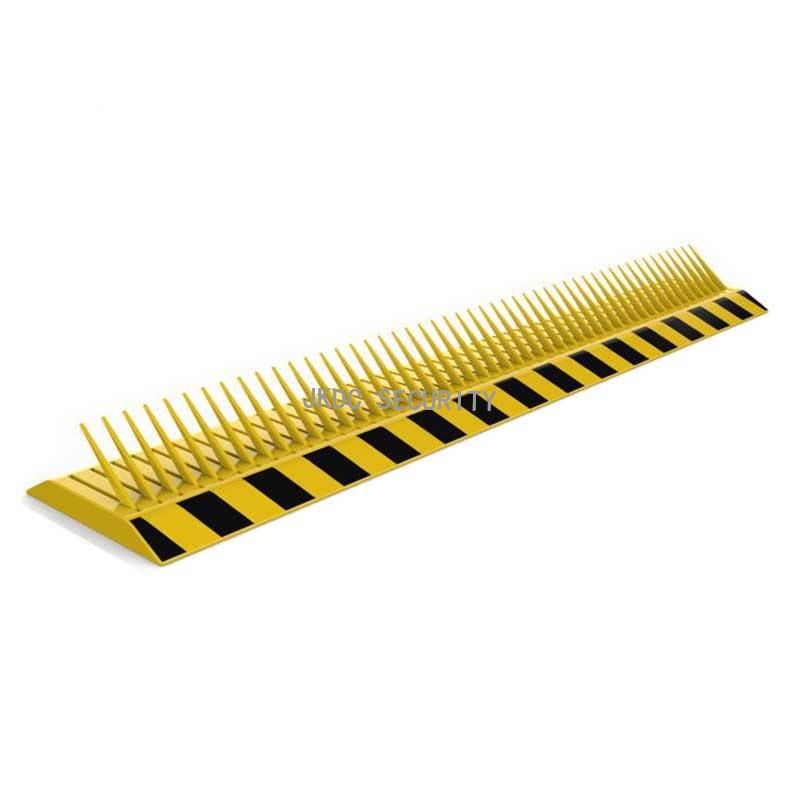

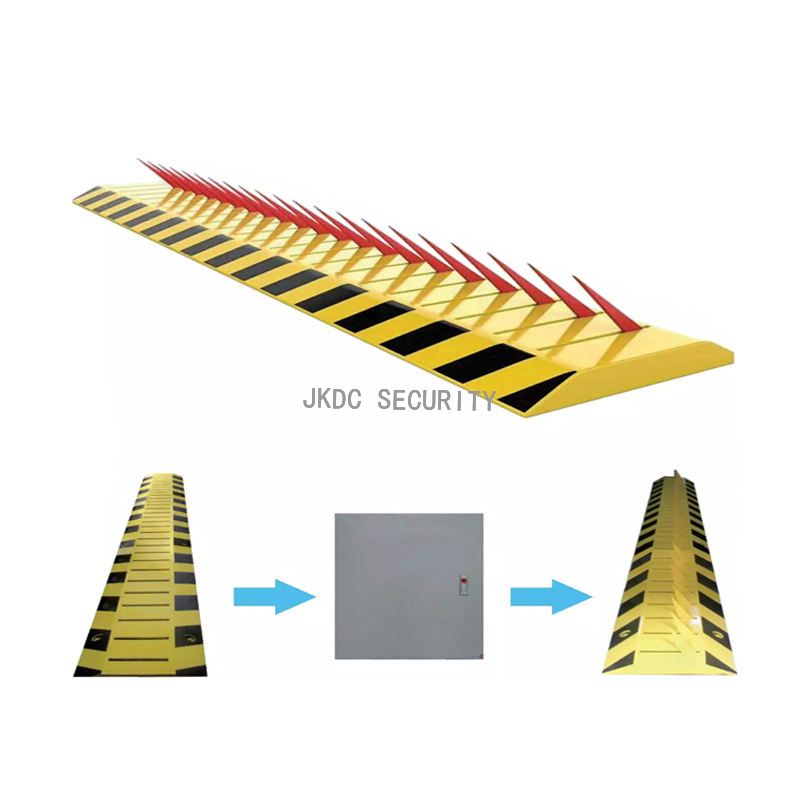

The Traffic Spike Tire Killer Auto Barrier is an automated, high-security vehicle interception system designed to provide instant and reliable perimeter protection. It features a robust array of hardened steel spikes that deploy automatically upon signal activation, rapidly puncturing tires and immobilizing unauthorized vehicles within seconds. Ideal for critical infrastructure, military checkpoints, border controls, and high-risk facilities, this barrier combines rugged all-weather construction with intelligent activation—supporting remote control, sensor-based triggers, and integration with existing security systems. Its fail-safe design ensures continuous operation even in extreme conditions, while maintaining smooth passage for authorized traffic when disarmed. A decisive layer in defense-in-depth security strategy, this system delivers visible deterrence and physical enforcement in one resilient package.
Highlights
Specifications
Product Name | Traffic Spike Tire Killer Auto Barrier |
Model Number | |
General specification | |
Materials | Q235, A3 Steel |
| Raising/Lowering Time | 1–2 seconds (adjustable) |
| Blade Height | 150 mm (customizable) |
| Width Range | 1000–8000 mm (OEM supported) |
| Steel Thickness | 12 mm (customizable) |
Unit Operating Voltage | Key-controlled bollard operation; no external power required for manual mode |
| Operating Temperature | –45 ℃ to +75 ℃ |
| Ingress Protection Rating | IP67 |
| Motor Power | 370 W |
| Power Supply Voltage | 220 V AC (control voltage 24 V DC) |
| Pressure Capacity | Withstands 100-ton container trucks |
| Optional Features | Traffic lights, solar lights, manual pump, safety photocells |
| Impact Resistance Rating | K12 (equivalent to impact at 120 km/h; vehicle immobilized, device remains operational) |
Package
Product Package | |
Single Package Dimensions | 100 × 100 × 50 cm |
Single Product Gross Weight | 68.000 kg |
