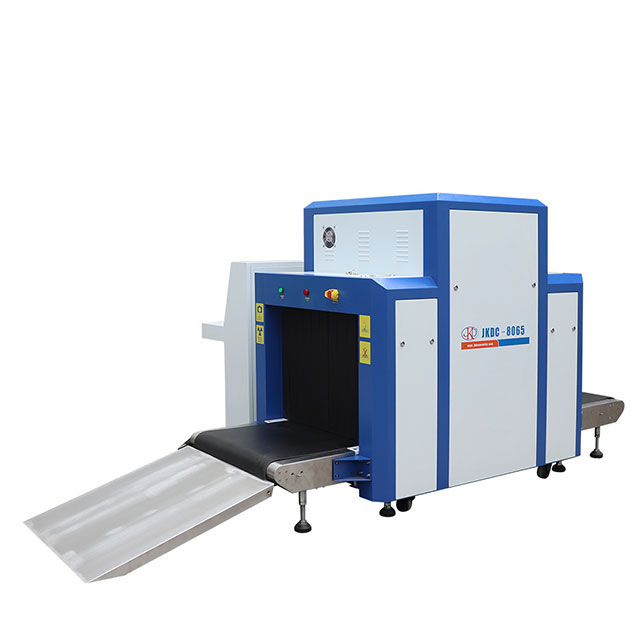

Parcel Cargo Inspection Airport X Ray Scanner 8065C Tunnel Size Parcel Cargo Inspection Airport X Ray Scanner 8065C Tunnel Size

X-Ray Baggage Scanner , the object can be found within the metal structure, can display the naked eye can not see where the liquid is also very obvious object display. Used in the factory testing of security products and business units such as: electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.

Quantity:
Share this:
Highlights
  • Alarm by sounds + light  Alarm by sounds and light when conform to condition..

  • Network interface  Could be connect local area network and support multi-terminal check baggage at same times

  • Safety ray  Transmit ray under automatic control, avoids the missing

  • Turn off by a key control  Turn off the machine only need one step  revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

  • Eagle-eye  Could be expediently observing enlargement area.

  • Estimate malfunction by self  Automatic estimate malfunction and prompt message, helpful for the maintenance



Specifications


Product NameX-ray inspection machine

Model Number

JKDC-8065C

Features

Network Interface

Can connect local area networks, multiple terminals can check luggage’s at the same time

Safer-ray

Ray fired automatic control, to avoid misusing launching

One shutdown

    control button

You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.

Eagle Eye

Current region can be reviewed convent in enlarged status

Fault self-diagnosis

Automatically determine the failure and give prompt information, easy to maintain

General Specifiction

Tunnel Size

800 (W) × 650 (H) mm

Conveyor speed

0.22 m / s

Conveyor Max load

200kg(Evenly distributed)

Single inspection dosage<1.0μGy
Wire Resolution0.1mm Copper Wire
Steel Penetration34mm armor plate
Film safetyFor ISO1600
Maximum leakage radiation<0.05µGy/h
Image System
X ray SensorL-Shaped Photodiode Array(Monoenergetic),12bit Deep
Color DisplayFull Color
MonitorHigh-Resolution Color, LCD Accord, 19 inch
Image Processing

Edge enhancement, image strengthening, image lightening,  reducing darkening,image returning, image retrieval

Image processing 24bit for processing real-time
Image grey level 4096
Image max resolution1024*1280 pixel
Image storage Storage 60000 pictures in real-time
High-energy/low energySwitch from high energy to low energy
Multi-energetic distinguish objects

Organic objects in orange

Inorganic objects in blue

Mixture in green

Zones & Zoom1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

X-ray generator

Orientation

 Downward

Tube current

0.5mA (adjustable)

Anode voltage

140kV (adjustable)

Generator Angle80 degree
Cooling / Duty CycleOil Cooling / 100%


Package
Package Size
Package Size200*120*175cm
Net Weight450KG
Gross Weight525KG


×
