Small Tunnel Size X-ray Baggage Scanner and Parcel Inspection Scanner Small Tunnel Size X-ray Baggage Scanner and Parcel Inspection Scanner

X- ray penetrate to inspect object's metal structure, display where is invisible to the naked eye. can detect which is invisible to naked eyes. This machine is widely used in the detection of electronics, shoes, toys, courts, railway stations, as well as for the security detection of handbag.Multi-energy image processing system.

Quantity:
Share this:
Highlights
  • The image is clearer. Can work continuously to save 50,000 patterns.

  • Low leakage radiation dose rate, equipment surrounding the radiation dose rate is close to natural background levels; comply has all international and domestic health safety standards;

  • Dangerous goods images provided by the plug-in (TIP), the convenient operation personnel image recognition ability training and assessment;

  • Adopting modular design, and provides the X-ray source and detector array, dedicated keyboard key components such as testing diagnosis function, make the equipment fault diagnosis and maintenance is more accurate and fast

  • Multi-energy image processing system

Specifications



Product Name
X-ray inspection machine

Model Number

JKDC-5030C

General specification

Certification

CE&ISO

Dimension

1670*820*1201mm

Tunnel Size

500(W)×300(H)mm

Conveyor Speed

0.2m/s

Conveyor Max Load

100kg (evenly distributed)

Dose per Inspection

less than 1.5 μGy/h

Wire Resolution

Typical AWG40

Through resolution

Typical AWG34

Spatial Resolution

Level: dia1.0mm, Vertical: dia1.0mm

Penetration

34mm Steel

Film Safety

Guarantee ISO1600 Film

X-ray leakage

1 μGy/h (at a distance of 5cm  from frame house)

Working voltage

AC220V ±10%

Working temperature

0~45ºC

Working consumption

0.3KW(working)  1.0KW(max)

Working humidity

20%~95% RH

Working noise

<55 dB

Image system

X-ray sensor

L-shaped photo diode array(mono energetic), 16 bit deep

monitor

19 inch high resolution color, LCD Accord

Image grey level

4096

Image max resolution

1024*1280 pixel

Image processing

24 bit for processing real time

Image storage

50000 pictures in real time

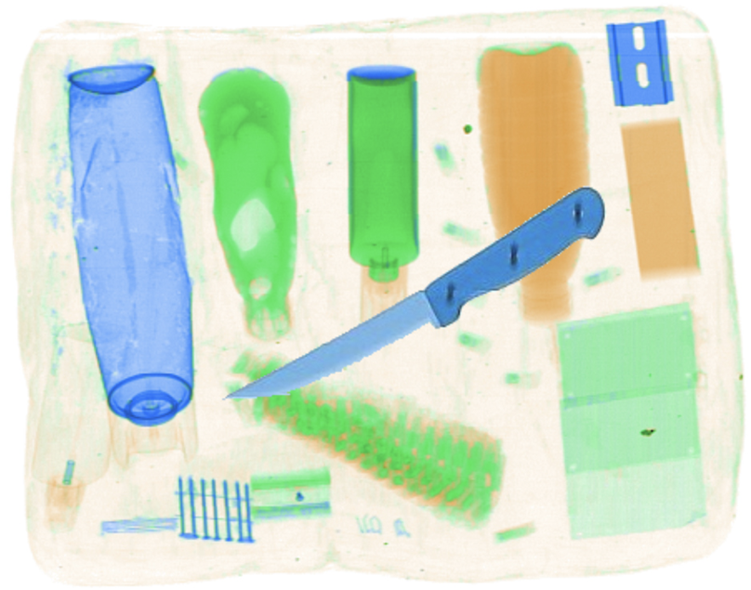

Objects distinguish

Organic in orange

Inornanic in blue

Mixture in green

X-ray Generator

Generator direction

Upward

Generator angle

80 degree

Anode voltage

140KV

Anode Power

0.3mA

Cooling

Oil cooling 100%


Package
Package Size
Dimension182*94*141cm
Meas2.4 CBM
Net Weight350KG
Gross Weight390KG


×
