JKDC-5030A with X-ray scanner detecting.More strong penetration.Which show object interior metal structure by LCD screen.Especially designed for tourist spot,gymnasium, conference centre,exhibition,baggage deposit,shopping mall,hotel and other important locations.
Full screen imaging, super large image, clear layer.Can work continuously to save 10,000 patterns.
The equipment X-ray leakage reaches green environmental protection level, no radiation
All-day working state, continuous cooling without standby
Energy saving: start running when there is luggage on the machine, and stop automatically when there is no running
The image can be enlarged by 32 times, and the magnification can be displayed energeticly
Real-time display of the amount of X-ray emission time
| Product Name | X-ray inspection machine |
| Model Number | JKDC-5030A |
General specification | |
Tunnel Size | 500(W)×300(H)mm |
Conveyor Speed | 0.2m/s |
Conveyor Max Load | 150kg(Evenly distributed) |
Dose per Inspection | less than 1.0 μGy/h |
| Wire Resolution | 32AWGΦ0.202mm |
| Spatial Resolution | Level: dia1.0mm Vertical: dia1.3mm |
| Penetration | 14mm Stell |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | less than 1 μGy/h (at a distance of 5cm from frame house) |
| Monitor | 19 inch |
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing ) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | less than 0.5KW |
Image system | |
X-ray sensor | L-Shaped Photo diode Array (mono energetic) , 16bit Deep |
Monitor | High-Resolution Color, LCD Accord, 19 inch |
Image Processing | Edge enhancement, image strengthening, image lightening, reducing darkening,image returning, image retrieval |
Image grey level | 4096 |
Image max resolution | 1024*1280 pixel |
Image processing | 24bit for processing real-time |
Image storage | Storage 10000 pictures in real-time |
X-ray generator | |
Generator direction | Upward |
Generator angle | 80 degree |
Anode voltage | 80KV |
Anode power | 0.6mA |
Cooling / Duty Cycle | Oil Cooling /100% |

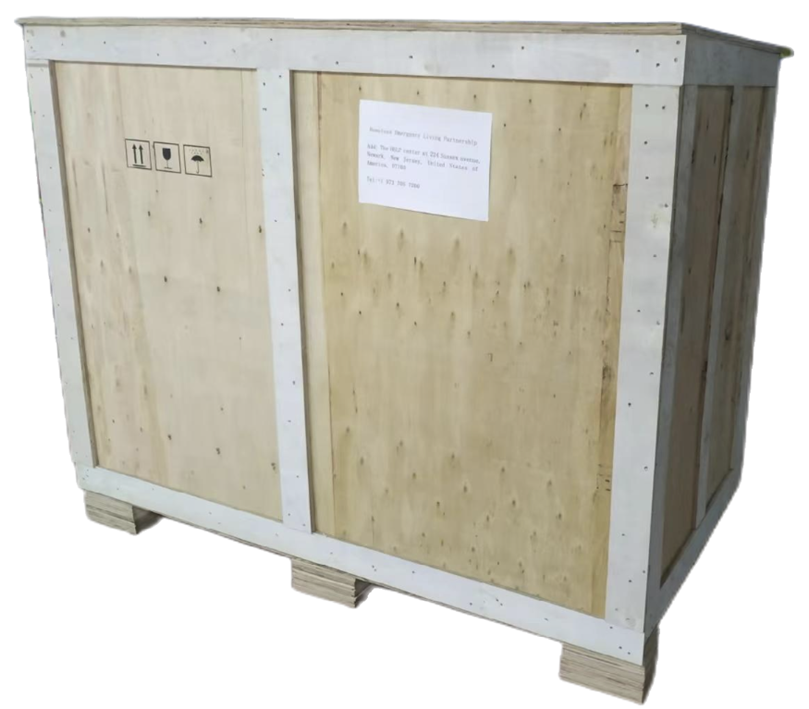

| Package Size | |
| Dimension | 182*94*141cm |
| CBM | 2.42CBM |
| Net Weight | 190KG |
| Gross Weight | 249KG |
