High Conveyor Speed Airport X Ray Cargo Scanner With Two Generator High Conveyor Speed Airport X Ray Cargo Scanner With Two Generator

Quantity:
Share this:
Features
  1. The low-channel security check package is more convenient to use.

  2. Low noise ≤55db, lowpower consumption ≤0.65KW.

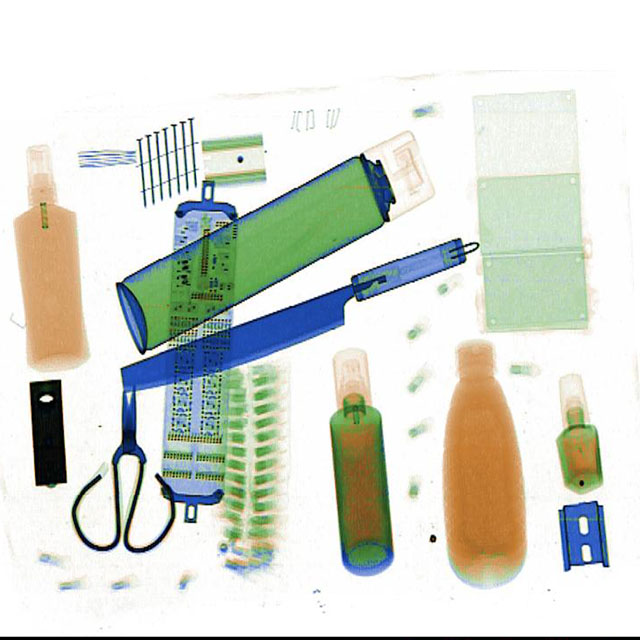

  3. High-definition image, clean background, clear outline, strong three-dimensional effect, clean and realistic surface of the physical image, using 24-bit true color image.

  4. Full-screen imaging, large screen, full-screen no dead ends, no distortion of graphics.

  5. Classification and imaging, the imaging of multi-layer items in the large luggage bag does not overlap, and the security inspection is clear.

  6. Increase the infrared energy-saving system, the conveyor belt will run automatically when there are packages, and the conveyor belt will automatically stop after 10 seconds without packages.

  7. Adopting dual-light source and dual-scanner technology, the full screen is divided into main viewing angle and side view, inspecting the package image in all directions to prevent missing inspection due to overlapping items.

Specifications


Product Name
X Ray Cargo Scanner With Two Generator
Model NumberJKDC-100100D

General specification

Tunnel Size

1000(W)×1000(H)mm

Conveyor Speed

0.2m/s

Conveyor Max Load

250kg(Evenly distributed)

X ray leakage

less than 1.0  μGy/h

Spatial resolution

Horizontal:dia1.0mm

Vertical: dia1.0mm

X ray dose per each inspection

less than 0.5 μGy

Penetration43mm Stell
Film SafetyGuarantee ISO1600 Film
Monitor 19 inch
Operation temperature/Humidity0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity -20°C-60°C/20%-95%(non-condensing )
Operation Power220VAC(±10%)50±3Hz
Power Consumptionless than 1KW

Image system

X-ray sensor

L-Shaped Photodiode Array , 16bit

Monitor

High-Resolution Color, LCD Accord, 19 inch

Image Processing

Edge enhancement, image strengthening, image lightening,  reducing darkening,

image returning, image retrieval

Image grey level

4096

Image max resolution

1024*1280 pixel

image processing

24bit for processing real-time

image storage

Storage 60000 pictures in real-time

X-ray generator

Generate direct

beam from side & beam from top to bottom

Anode Anger

80 degree

Anode voltage

140KV

Anode power

0.5mA

Cooling / Duty Cycle

Oil Cooling /100%


×
